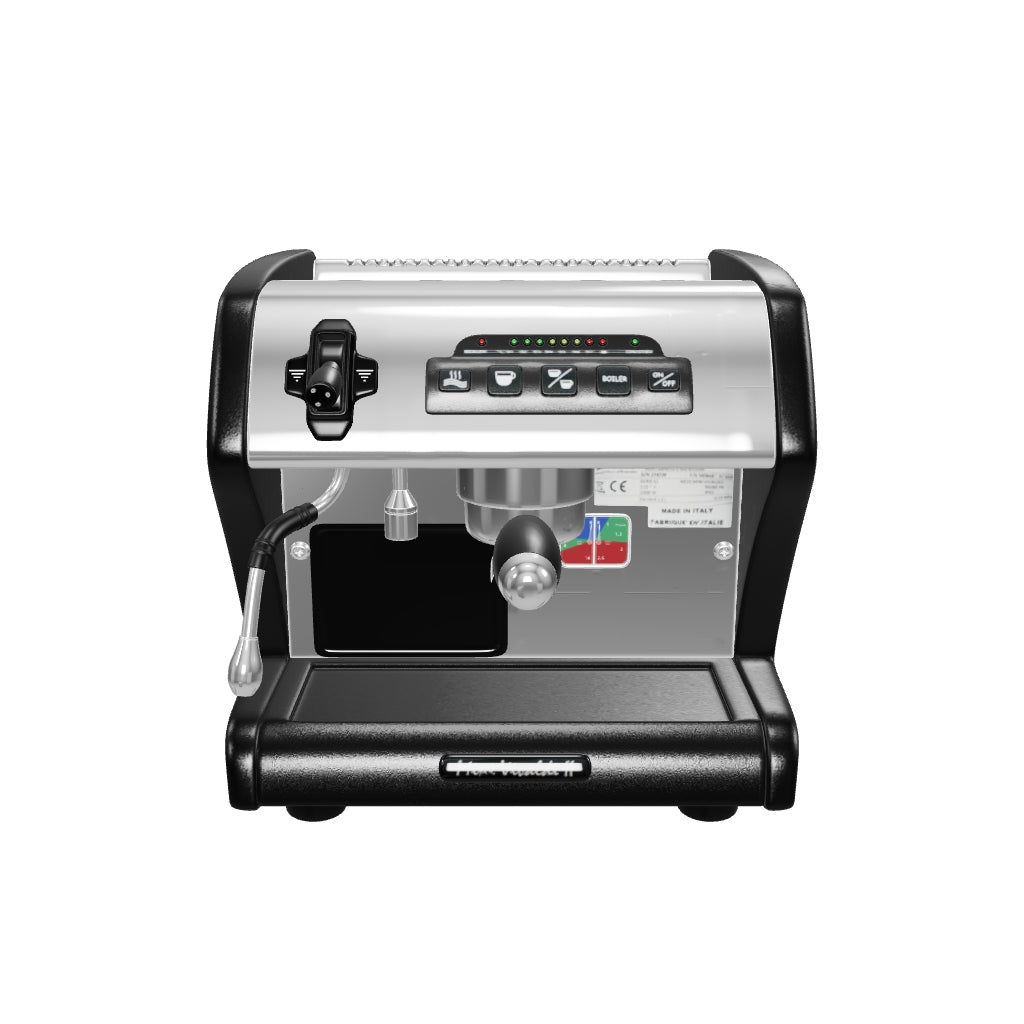

La Spaziale Mini Vivaldi II

Highlights

If you are short on space in your kitchen but still want to drink quality espresso at home, the S1 Mini Vivaldi II Home Espresso Machine is what you've been waiting for. After receiving many requests for a non-plumbed version, we connected with the manufacturer to design this impressive, compact La Spaziale at-home espresso machine.

Warranty

You also get the peace of mind to know that all warranty work is handled by Chris' Coffee. Our staff of factory-trained technicians has over 100 years of combined experience servicing all makes and models of commercial espresso machines. They are not only here to service machines but are available to take your phone calls to answer any questions you may have. Though mini is in the name, the list of features for this new La Spaziale at-home espresso machine is long.

Please Note. NOT to be used in commercial application. Your warranty will be VOID.

Key Features

The top cover has been redesigned to eliminate the Plexi cup guard. The new top is much more user-friendly; the cup guard could easily break, leaving a gap around the edges. This also lowers the overall height of the machine to just 15". The portafilters that come with the machine have also been redesigned.

Developing a Non-Plumbed Version

The Vivaldi II Spaziale espresso machine is our number one selling home espresso machine. We felt that with the number of requests for a non-direct plumbed version we received, that it was worth going back to La Spaziale and working on a Mini (non plumbed) version. After more than a year it was finally designed and brought to life, and has exceeded our expectations. It has the same great look as the Vivaldi II and performs equally as well, yet does not need to be plumbed in.

Offset Differential

We thought the Mini Vivaldi II La Spaziale espresso machine was perfect like it was. But then in 2008 we decided there were a couple of things we could do to improve it even more. We added Programmable + or - 8-degree Offset Differential and added an option to have a Pre Infusion Chamber installed on the group.

Optional Pre-Infusion Chamber

Now you can add a Pre Infusion chamber to your La Spaziale Mini Vivaldi II espresso machine. This pre-infusion chamber functions the same way a pre-infusion chamber on an E61 group does. There is already a pre-drilled and tapped hole in the side of your brew group where the chamber attaches. You simply unscrew the plug that is there and attach the chamber. Here is a downloadable PDF installation instruction manual. Click Here When ordered with the machine, the installation is included at NO additional charge.

Programmable Offset Differential

This allows you to set the LED temperature setting on the front of the machine to be equal to the temperature being delivered at the group rather than the temperature inside the group boiler. The original Mini Vivaldi II machines had this feature but it was only a 3-degree adjustment. Although we had not run into any problems setting the proper offset with this small range we figured since it is only a software change why not make it + or - 8 degrees, therefore, insuring there would NEVER be an issue. Note: We set it during the bench test of each machine prior to shipping so you don't have to invest in the expensive equipment necessary to perform the tests and setting.

Dual Manometer

It is no longer necessary to purchase a portafilter with a pressure gauge to either check or make adjustments to your pump's output pressure.

Decreased Delta

What does that mean? The previous model would need to detect a temperature drop of one degree Celsius before the heater would be activated. The NEW Vivaldi II activates the heater with the detection of a temperature drop of just one half degree Celsius. Simply put, it makes the temperature accuracy that much more precise in the group boiler and enhances the steam boilers' performance.

The new probe is actually submerged directly into the boilers. This probe has proven to be more reliable than the previous style and has a quicker reaction time.

New LED Displays

The previous display showed 5-degree increments, from 85 to 120 degrees Celsius. The NEW Vivaldi II displays in 1-degree increments, from 91 to 97 degrees Celsius.

Differential Adjustability

Programming allows you to set the temperature at the group to correspond with the LED. We test each machine and adjust the differential before shipping.

Updates

As of March 2014, the in-tank water softener has been replaced with a softener pouch. If you wish to purchase the in-tank softener, click here.

As of August 2017, this machine can only be used in 15 amp mode but will continue to have a 20 amp plug on the machine, so a converter cord will be included with all Mini Vivaldi machines.

As of December 2021, the Mini Vivaldi now has bluetooth connectivity built into the software.

Technical Notes

• Redesigned top cover
• Steam tip with 4 smaller 0.9 mm holes
• Dual boiler
• Programmable offset differential
• Swivel stainless steel steam arm
• Manual fill, 2.4-liter water tank

• Vibratory pump (extremely quiet)
• Volumetric dosing, adjustable through the touchpad
• One-degree group temperature adjustability, indicated by LED display
• Group temperature adjustable through the touchpad
• Electronic boiler refill
• Built-in safety thermostat
• Built-in safety cut out on the vibratory pump
• Semi-automatic hot water delivery
• Lever steam valve, same as La Spaziale S5 commercial machines
• Fault diagnosis alarms
• Dual manometer
• 15 Amp / 110 Volts
• 2 1/2" clearance between the drip tray and the portafilter
• Improved design with space for holding your mugs
• Excellent micro foam from the .9 mm four hole steam tip
• Programmable timer with multiple settings (optional)
• A more accurate temperature probe
• Dual manometer eliminates the need for a portafilter with a pressure gauge
• Ability to add a pre-infusion chamber(optional)
• Programmable offset differential

Included with the Mini Vivaldi II

• Single spouted portafilter with insert basket
• Double spouted portafilter with insert basket
• Group gasket
• Back flush disk
• Plastic tamper
• Metal wire brush
• Softening pouch
